10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery

Product Details:

Place of Origin: CHINA
Brand Name: Hochiry
Certification: TUV

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: Product size: 23*12*20cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm*46cm*21cm
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece per week

Description

Product Name: Rechargeable 48v 100ah Battery Battery Type: LiFePO4
Cycle Life: 3000cycle/6000cycle Protection: Built-in Smart BMS
Capacity: 50Ah/80ah/100Ah/200Ah Application: Solar, Wind, UPS Energy Storage
Communication Port: RS232, RS485, CAN
High Light: Lithium Ion Battery 48v Solar System,

Solar System Lifepo4 Battery,

Rechargeable Battery Solar Energy System 200ah

Product Description



Hochiry 10kwh 48v 200ah Lifepo4 Battery 48v Solar System Lithium Ion Battery

Specifications

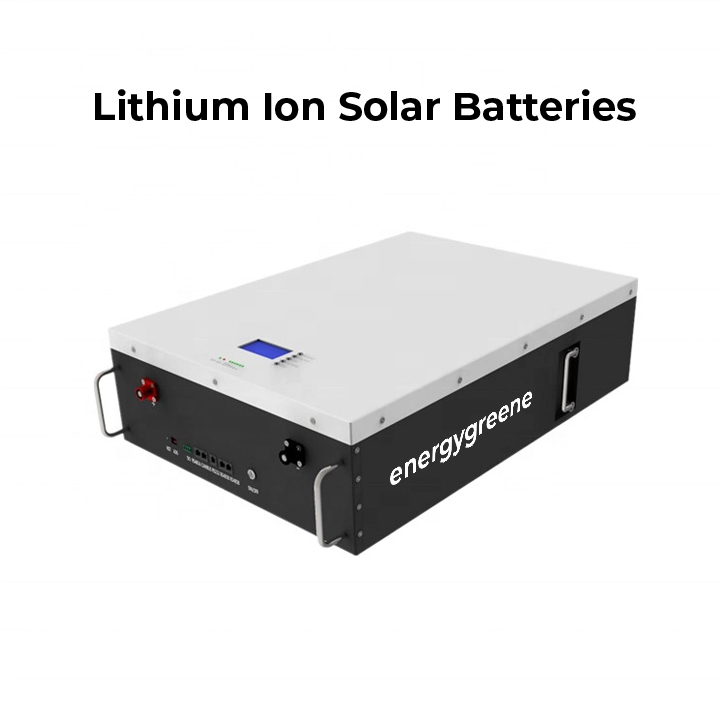

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 0
Model
5000W
7000W
10000W
Nominal Voltage
51.2V(16series)
Capacity
100Ah
150Ah
200Ah
Energy
5120Wh
7680Wh
10240Wh
Internal Resistance
≤30mΩ
Cycle Life
≥5000 cycles @80% DOD, 25℃, 0.5C
≥4000 cycles @80% DOD, 40℃, 0.5C
Design Life
≥10 years
Charge Cut-off Voltage
56.0V ±0.5V
Max. Continuous Work Current
100A/150A(Can Choose)
Discharge Cut-off Voltage
45V ±0.2V
Charge Temperature
0℃~60℃(Under 0℃ extra heating mechanism)
Discharge Temperature
-20℃~60℃(Under 0℃ work with reduced capacity)
Storage Temperature
-40℃~55℃ @ 60% ± 25% relative humidity)
Dimensions
680 x 458 x 180(220mm)
Weight
Approx : 65kg
Approx : 85kg
Approx : 98kg
Protocol (optional)
RS232-PC, RS485(B)-PC
RS485(A)- Inverter, Canbus-Inverter
Certification
UN38.3, MSDS, UL1973(Cell), IEC62619(Cell)

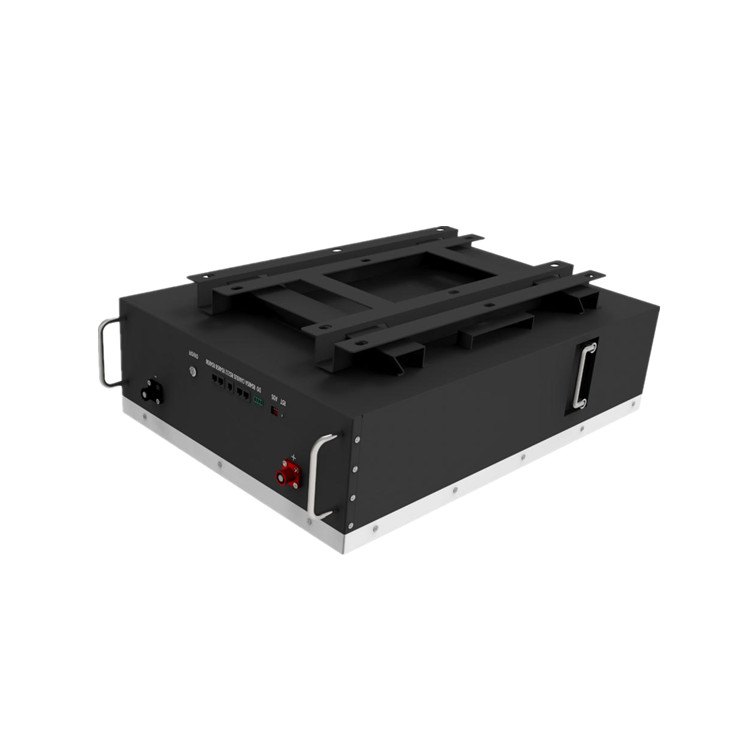

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 1

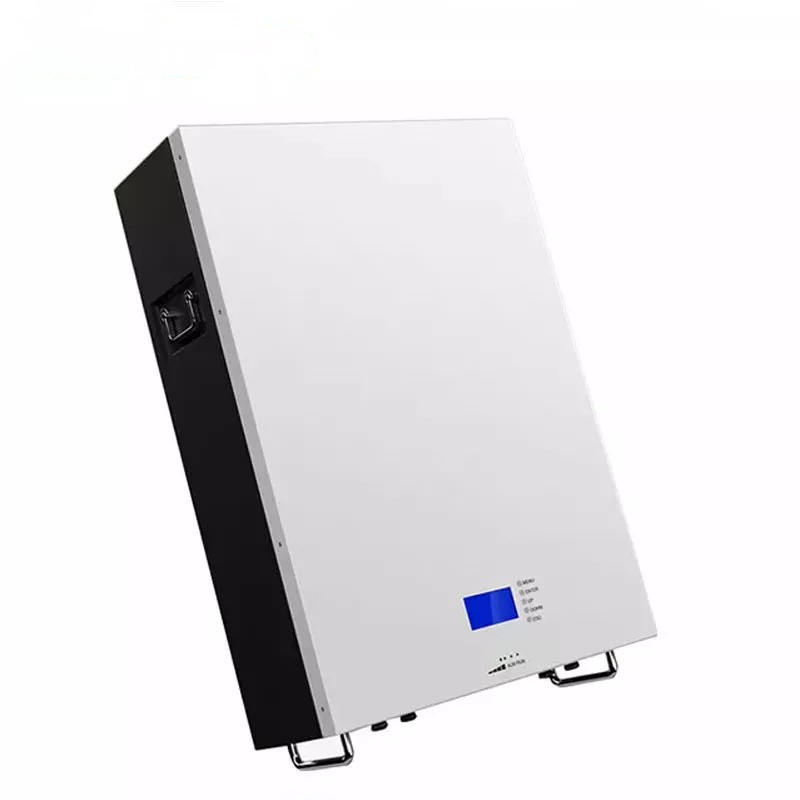

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 2

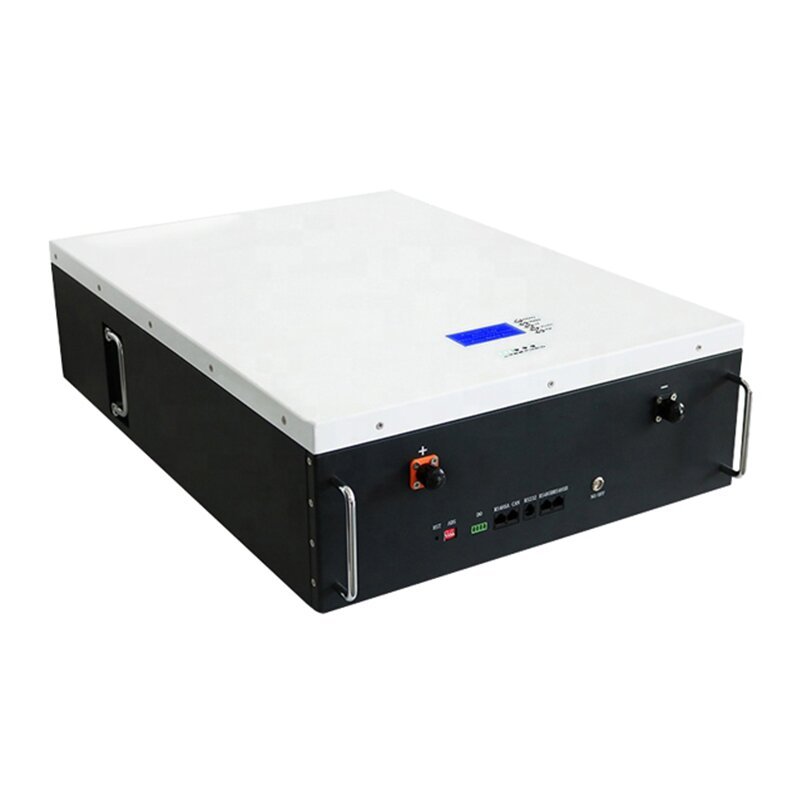

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 3

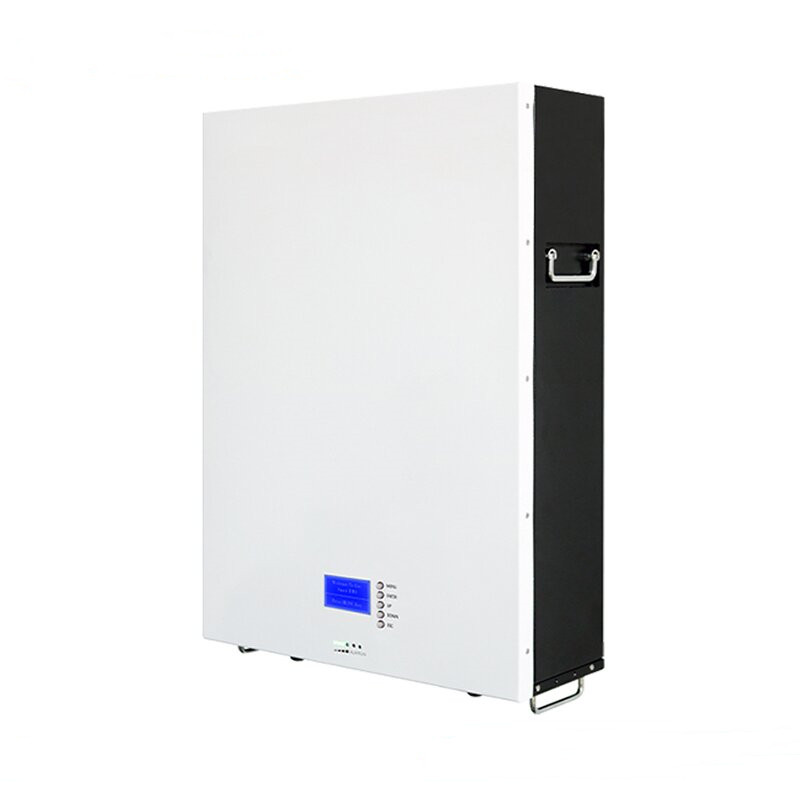

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 4

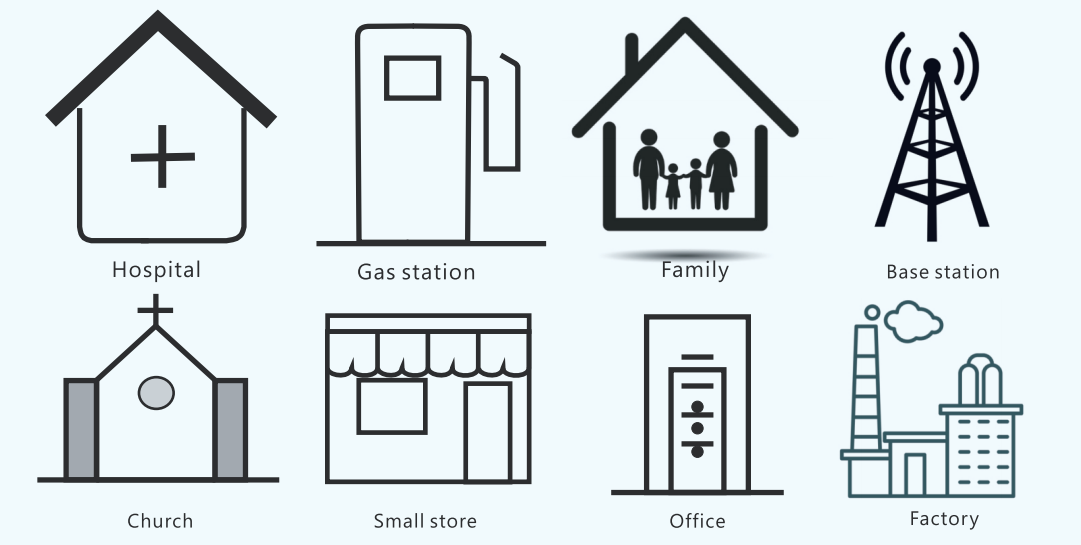

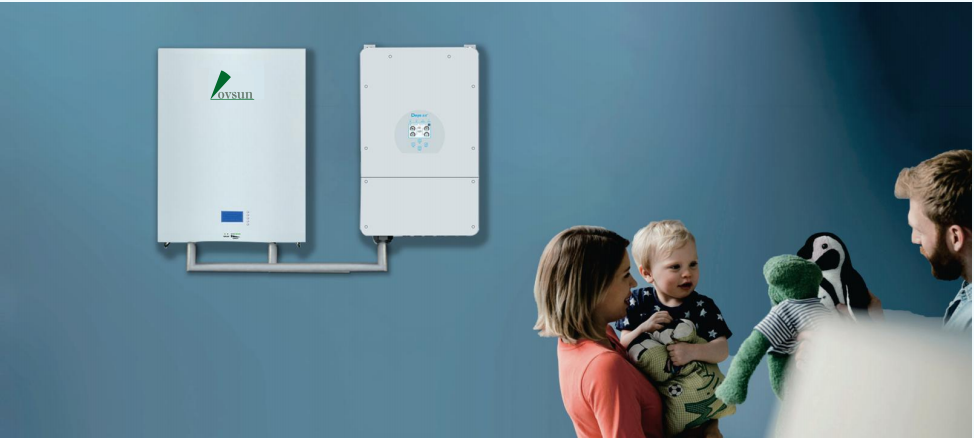

Application Scenarios

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 5
10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 6

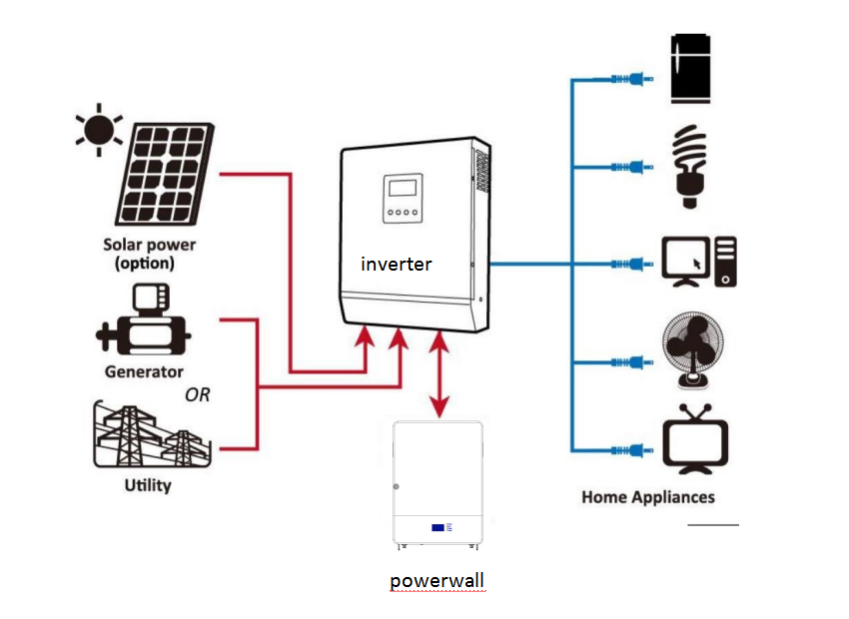

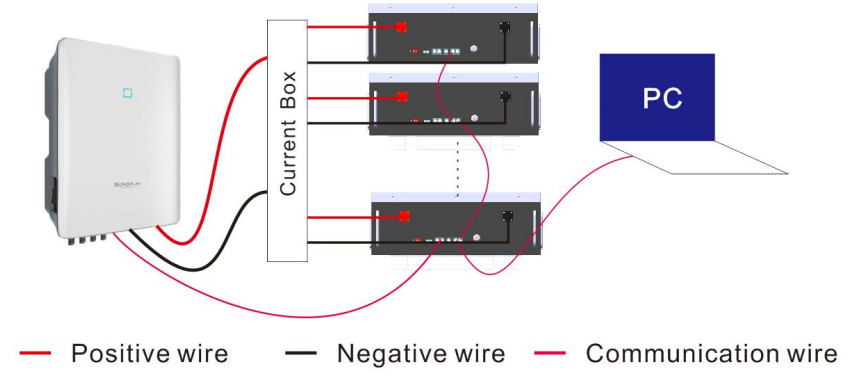

System Diagram

10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 7
10kwh 200ah 48v Solar System Rechargeable Lifepo4 Lithium Ion Battery 8
