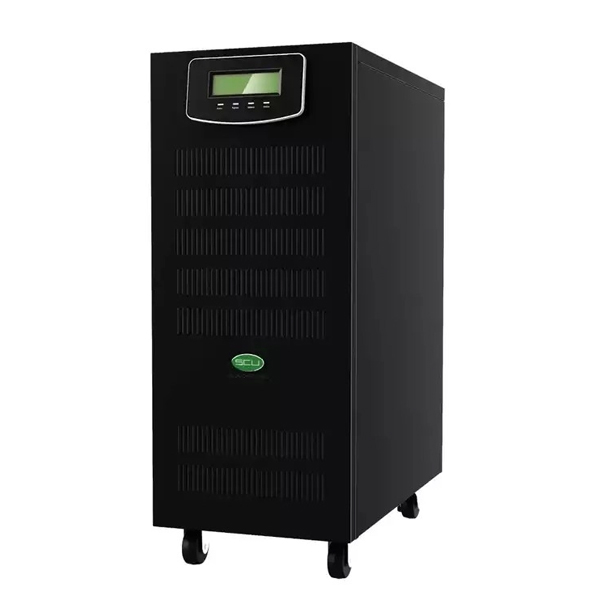

System Capacity: 30KVA

Dimension: 400*750*1000(W*D*H)mm

Weight:120KG

Optional isolated output transformer

DSM is a high frequency, on-line double-conversion uninterruptible power supply. 0.9 output PF to suit any load. In the same time, 6 system parallel is available, which meets the requirements of users’ demand. DSM design and high control technology provides better protection and higher reliability on load.

The UPS has been designed to protect critical information and telecommunications systems, networks, services and processes which operation could be disrupted by poor power quality and/or breaks in their mains power supply.

• ZERO IMPACT SOURCE

– low input current distortion – less than 3%, high input power factor 0.99;

– Delayed start-up protects its power supply sources (mains or generator) from any harmonics and reactive power

generated by the loads it is powering.

• BATTERY CARE SYSTEM

– Two voltage level recharge meeting the IU characteristic:

– Temperature compensation: to avoid excessive voltage being applied to the batteries in a high ambient

– Extendable back-up time options using battery extension cabinets

– Battery test: to detect performance degradation and predict battery failure.

– Cycle recharge function. Battery could be maintenance according battery manufacturer’s requirements, in order to

extend the life of battery.

– “Trial charging” recharging function, in order to avoid voltage unbalance after changing battery.

• Extension inverter design capacity, which supplies 115% load (PF0.8) for a long time.

• Full active power from 0.9 capactive to 0.9 inductive load.

• High efficiency design, more than 95% (online mode)

• DSP microprocessor technology ensures excellent static and dynamic characteristics in any operation situation.

• Simple and convenient separation bypass

• Variety of intelligent communication. Remote monitoring and control, easy management, suitable for unattended operation.

• optional isolation transformer

Small server room, network, bank, security, transportation, broadcast&TV network, HealthCare, Communication, Finance.
