Description
| Product Name: | Lithium Ion Storage Battery | Battery Type: | LiFePO4 |
|---|---|---|---|
| Ystem Normal Energy (DOD 100%): | 10kWh~25kWh | Protection: | Built-in Smart BMS |
| Capacity: | 50Ah/80ah/100Ah/200Ah | Application: | Solar, Wind, UPS Energy Storage |
| Communication Port: | RS232, RS485, CAN | ||
| High Light: | Lithium Ion Battery Power Wall 200Ah,
Solar Lithium Ion Battery 48V, Solar Energy System Power Wall 50Ah |
||
Product Description
Lithium Battery Solar 48v Lithium Battery Solar Lithium Ion Battery Power Wall 48V 50Ah 100Ah 200Ah
Products Description
AMASS GTX3000 is an energy storage unit that is designed to be used in residential or commercial on-grid applications with the capability for short-term backup.AMASS GTX3000 is not suitable for supporting life-sustaining medical devices.
AMASS GTX3000 has built-in BMS (Battery Management System, include master BMS in BCU and slave BMS in battery modules), which can manage and monitor cells information including voltage, current and temperature. What’s more, BMS can balance cells charging to extend cycle life. BMS has protection functions including over-discharge, over-charge, over-current and high/low temperature; the system can automatically manage charge state, discharge state and balance state.
Product Parameters Thông số kỹ thuật
|
Basic Parameters
|
GTX3000-
H4
|
GTX3000-
H5
|
GTX3000-
H6
|
GTX3000-
H7
|
GTX3000-
H8
|
GTX3000-
H9
|
GTX300-
H10
|
|
Battery module
quantity
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
|
Nominal voltage
|
204.8V
|
256V
|
307.2V
|
358.4V
|
409.6V
|
460.8V
|
512V
|
|
MAX. Charge
Voltage
|
230.4V
|
288V
|
345.6V
|
403.2V
|
460.8V
|
518.4V
|
576V
|
|
MIN. Discharge
Voltage
|
182.4V
|
228V
|
273.6V
|
319.2V
|
364.8V
|
410.4V
|
456V
|
|
Nominal energy
|
10kWh
|
12.5kWh
|
15kWh
|
17.5kWh
|
20kWh
|
22.5kWh
|
25kWh
|
|
available energy(90% DOD)
|
9kWh
|
11.25kWh
|
13.5kWh
|
15.75kWh
|
18kWh
|
20.25kWh
|
22.5kWh
|
|
Dimension
(W*D*H)
|
515*480
*770 cm
|
515*480
*895 cm
|
515*480
*1020 cm
|
515*480
*1145 cm
|
515*480
*1270 cm
|
515*480
*1395 cm
|
515*480
*1520 cm
|
|
Weight(Kg)
|
138
|
168
|
198
|
228
|
258
|
288
|
318
|
|
Protection Class
|
IP65
|
||||||
|
Cooling
|
Natural
|
||||||
|
Nominal charging
current
|
25A
|
||||||
|
Max. Continuous
charging current
|
30A
|
||||||
|
Nominal discharg-e current
|
25A
|
||||||
|
Max.Continuous
discharge current
|
30A
|
||||||
|
Working
Temperature
|
-20℃ ~ 60℃
|
||||||
Note:
1,Operating current adjust according to cell voltage and battery temperature.
2,The parameter will be changed in different string battery module numbers (4~10 pcs battery modules).
1,Operating current adjust according to cell voltage and battery temperature.
2,The parameter will be changed in different string battery module numbers (4~10 pcs battery modules).
Product Details Chi tiết sản phẩm
|
NO.
|
Description
|
|
1
|
GTX3000-BCU (Battery Control Unit)
|
|
2
|
GTX3000-H (Battery Module)
|
|
3
|
GTX3000-Base
|
|
4
|
Power Switch
|
|
5
|
Start Button
|

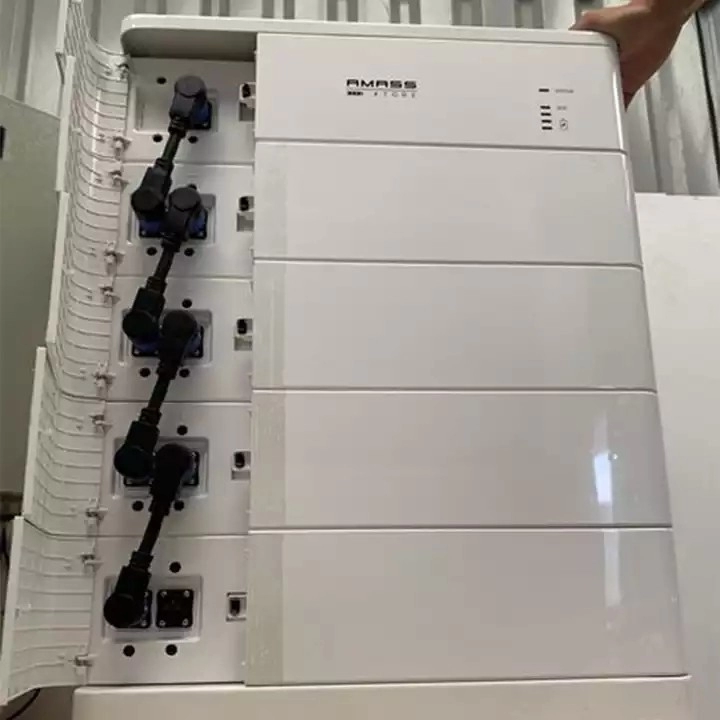

AMASS GTX3000 series consist of GTX3000-H battery modules and GTX3000-BCU (Battery Control Unit) connected in series.
L1 to L4: Blue, show the battery level.
L5: Green, long lighting when charging and flash when discharging.
L5: Red, long bright if equipment failure or protected.
L5: Green, long lighting when charging and flash when discharging.
L5: Red, long bright if equipment failure or protected.
|
No.
|
Items
|
No.
|
Items
|
No.
|
Items
|
|
1
|
Power Switch
|
4
|
Extend LCD Interface
|
7
|
BCU Link Port Out
|
|
2
|
Start Button
|
5
|
Dry Contact Terminal
|
8
|
P-
|
|
3
|
RS232
|
6
|
BCU Link Port In
|
9
|
P+
|
Product Packaging Đóng gói sản phẩm
