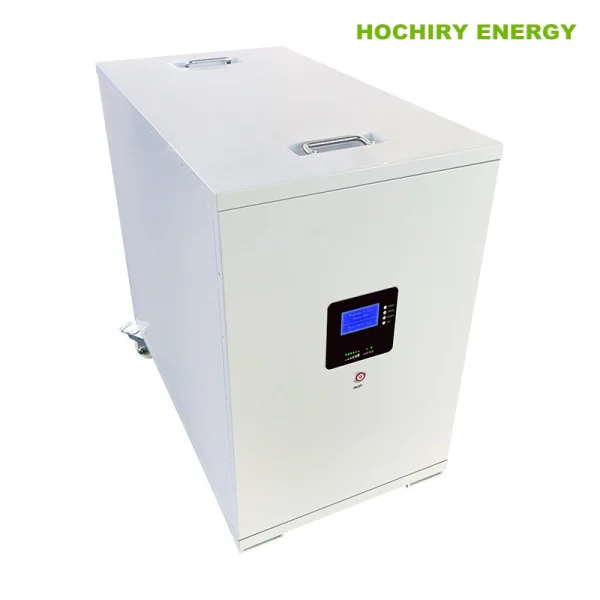

Light Weight Lifepo4 Lithium Battery Cabinet Storage With Wheel 48V 400Ah 20KWH

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV

Minimum Order Quantity:	10PCS
Packaging Details:	Product size: 231220cm Manner of packing: Color Box Single weight:3kg QTY / Carton:4 unit / Carton Carton N.W.:15.4kg Carton G.W.:16.2kg Carton Size:49.5cm46cm21cm
Delivery Time:	10-15 work days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 Piece per week

Description

Product Name:	Rechargeable 48v 100ah Battery	Battery Type:	LiFePO4
Cycle Life:	3000cycle/6000cycle	Protection:	Built-in Smart BMS
Capacity:	50Ah/80ah/100Ah/200Ah	Application:	Solar, Wind, UPS Energy Storage
Communication Port:	RS232, RS485, CAN
High Light:	Wheel Lithium Battery Cabinet, Light Weight Lifepo4 Battery System 400Ah, Storage System Lifepo4 Lithium Battery Cabinet

Product Description

Long Life Cycle LiFePO4 Batteries 5U 48V 200Ah Lithium Battery Pack Module

Specification
No.	Item	General Parameter	Remark
1	Combination method	16S8P
2	Rated Capacity	400Ah	Standard discharge after Standard charge(package)
3	Factory Voltage	51.2V	Mean Operation Voltage
4	Voltage at end of Discharge	46V	Mean Operation Voltage
5	Charging Voltage	58.4V
6	Internal Impedance	≤40mΩ	Internal resistance measured at AC 1KH Z after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
7	Standard charge	Constant Current 100A	Charge time : Approx 4.5h
7	Maximum Charge	250A
8	Standard discharge	Constant current:100A
9	Maximum Continuous Discharge Current	250A
10	Maximum Discharge Current	40A
11	Operation Temperature Range	Charge: 0~45℃	60±25%R.H.Bare Cell
11	Operation Temperature Range	Discharge: -20~55℃	60±25%R.H.Bare Cell
12	Storage Temperature Range	Less than 12 months : -10~35℃	60±25%R.H.at the shipment state
		Less than 3 months: -10~45℃
		Less than 7 day : -20~65℃
13	Dimensions	(LWH) 820460700mm	Include case
14	Weight	250kg	Include case

RDUCS DISPLAY

PRODUCT ADVANTAGE

APPLICATION

Energy Storage

–Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
–Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
–Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
–RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
–LED Backup / Engine Starting Battery,etc.

PACKING

Good Quality Packs

Low Quality Packs

SUPER SAFETY TEST

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

WHY CHOOSE US

◆ Experience–More than 12 years Specialized in lithium battery, Leaders of Lithium Lifepo4 Battery.
◆ Certification–CE,UL,MSDS,Test Report from National Center For Quality Supervision and Inspection of Battery Products approved.
◆ Quality Control– 37 production process,7 steps quality check to promise stable quality and high reliability for you.
◆ Best Material– Insist on choosing top quality cell, material and accessories,lithium battery last longer time.
◆ Fresh battery– All battery is fresh Production.
