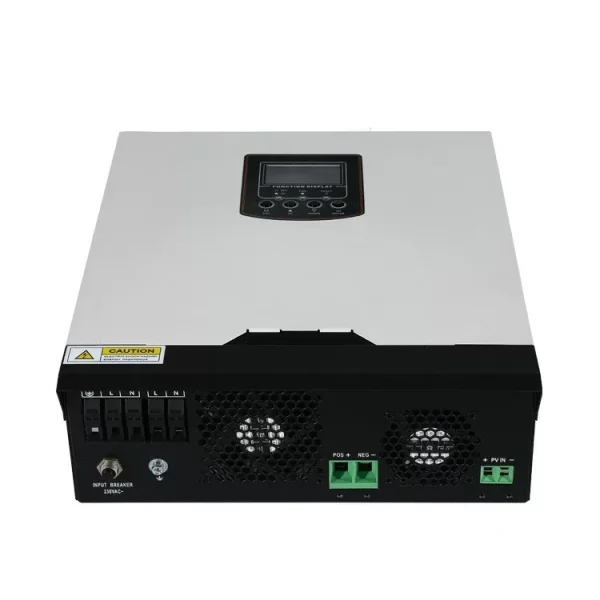

3KVA Off Grid Solar Hybrid Inverter 3kw 90-93% Efficiency Overload Protection

Product Details:

Place of Origin: CHINA
Brand Name: Hochiry
Certification: TUV
Model Number: SR3222

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: 495
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000KM/Week

Description

Product Name: ON Grid Off Grid Hybrid Solar Panel Inverter Output Frequency: 50HZ 60HZ, 50HZ/60HZ
Input Voltage: 12V24V36V, 24/48VDC/230VAC Output Current: 15A-80A, 80A
Output Voltage: 220 230VAC, 230VAC Output Power: 800-5000W
Output Waveform: Pure Sine Wave Output Application1: ON Grid Solar System
Application2: OFF Grid Solar System Application3: Hybrid Solar System
Efficiency: 90-93% Protection: Overload / Over Voltage/output Short Circuit
High Light: 3KVA Off Grid Hybrid Solar Inverter,
3kw Hybrid Solar Inverter,
Hybrid Solar Inverter 3kw

Product Description

Hybrid Off grid 3KVA solar inverter 3000Watt
Equipped with PM solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank. Transformer less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing ,integrated interface system.lt’s light and handy ,making installation easier.lt’s the ideal inverter for small PV plants ,or individually for small houses both indoors and outdoors.
Features:
1. Pure sinewave inverter
2. Built-in PWM solar charge controller
3. Selectable input voltage range for home appliances and personal
computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and shortcircuit protection
9. Smart battery charger design for optimized battery performance
10. Coldstart function
Working Way
Technical data
High Frequency Solar Inverter with Built in PWM Solar Controller
Model No.
SR1012P
SR3022P
SR5032P
SR5032PN
Rated power
1000VA/800W
3000VA/2400W
5000VA/4000W
5000VA/5000W
Input
Voltage
230V AC
Selectable voltage range
170-280VAC (for personal computers) 90-280VAC(for home appliance)
Frequency range
50Hz/60Hz (auto sensing)
Output
AC voltage regulation (Batt. mode)
230VAC±5%

Surge power

(5 seconds)
2000VA
6000VA
10000VA
10000VA
Efficiency(peak)
90-93%
93%
93%
93%
Transfer time
10ms (for personal computers); 20ms (for home appliance)
Waveform
pure sine wave
Battery & AC charger
Battery voltage
12VDC
24VDC
48VDC
48VDC
Floating charge voltage
13.5VDC
27VDC
54VDC
54VDC
Overchange protection
15VDC
31VDC
62VDC
62VDC
Max. charge current
20A
20/30/40/50/60AMP
Max PV array power
900W
1500W
3120W
3120W
Max. PV array open circuit voltage
50VDC
60VDC
105VDC
105VDC
PWM charging current
50A
50A
50A
Maximum efficiency
98%
Standby power comsumpsion
2W
Physical
Dimension D*W*H(mm)
95*240*316
100*272*385
155*295*455
Net weight(kgs)
5KG
7KG
12KG
Humicity
5%-95% relative humidity (non-condensing)
Environment
Operating temperature
0℃-55℃
Storage temperature
-15℃-60℃
Approximate Back-Up Time Table
Model
Load(VA)
Backup Time@24Vdc 100Ah(min)
Backup time@12Vdc 200Ah(min)
1KVA
200
766
1610
600
198
503
1000
112
269
Model
Load(VA)
Backup Time@12Vdc 100Ah(min)
Backup time@24Vdc 200Ah(min)
3KVA
300
449
1100
1500
68
164
3000
28
67
Model
Load(VA)
Backup Time@48Vdc 100Ah(min)
Backup time@48Vdc 200Ah(min)
5KVA
500
613
1288
2500
90
215
5000
40
90
