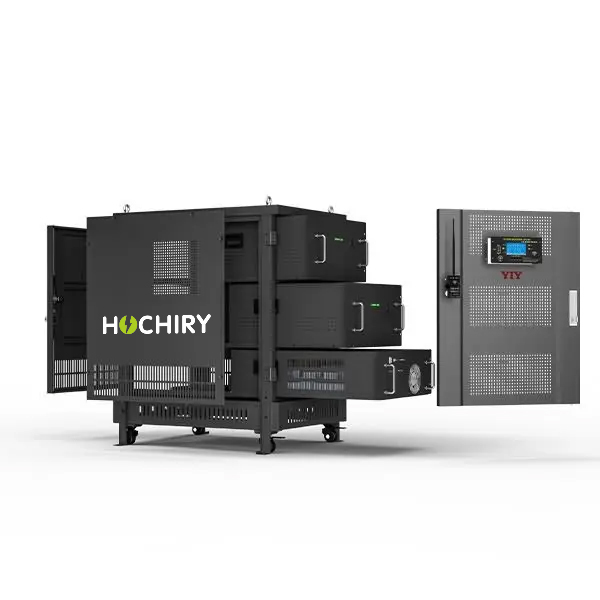

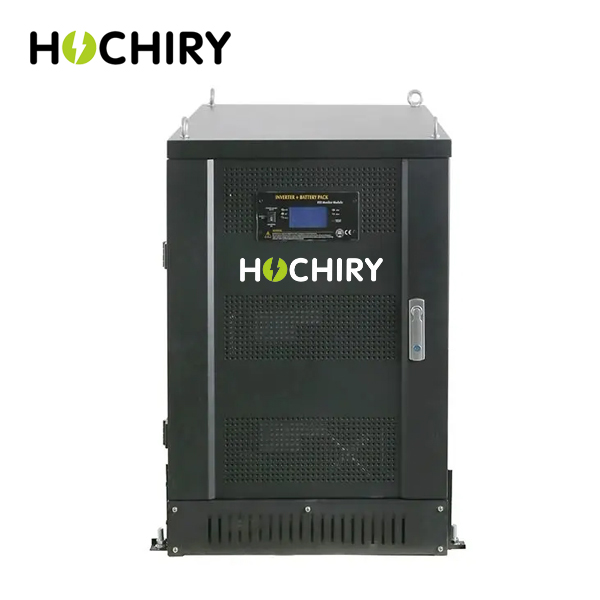

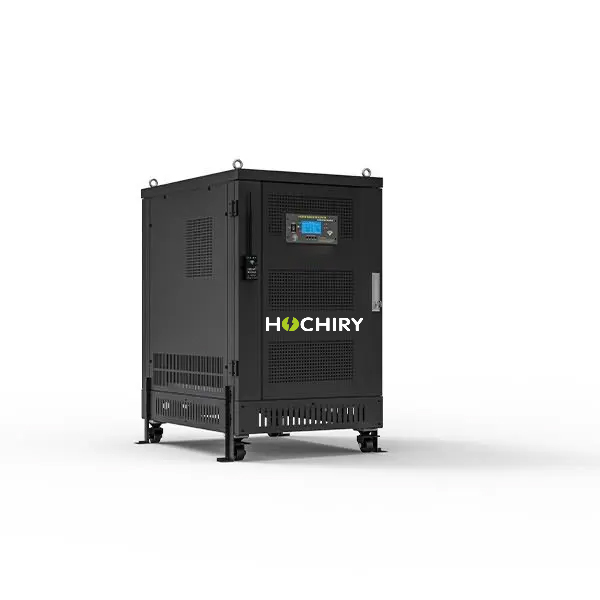

102.4 Kwh Energy Storage System LiFePO4 battery pack

HOME ENERGY STORAGE SYSTEM

ALL-IN-ONE
102.4KWH

ESS482000P8

Built with YIY off grid inverter charger
CAN / RS485 / WIFI APP
Multi working modes selectable
Modular design, flexible installation

BATTERY: LFP 48200R*10  51.2V / 200AH
MPPT : SCM 48480R 480A / 48V
SOLAR PANELS :370M6H 370W*72PCS

Description

Model Configuration
ESS482000P8 MPPT-SCM 48240R*2 INVERTER BATTERY-LFP 48200R*10 Total energy
480A(60A*8) External 2000AH(200AH*10) 100.24kwh
Battery Description
Normal specification
1 Rated Voltage 51.2V
2 Rated Capacity 2000Ah
3 Rated Energy 100.24KWH
4 Battery Configuration 10.24KWH(16S2P) *10PCS
5 Battery Cell 3.2V100AH 320PCS
Standard Charge
1 Operation temperature range @charging 0~45℃
2 Rated charge voltage 55.2±0.4V
3 Max charge voltage 56.8±0.4V
4 Overcharge protection 58.4±0.4V
5 Allowed MAX charge current(Total) 1100A withstand 30s (every pack 110A)
6 Peak charge current(Total) 1200A withstand 5s (every pack 120A)
7 Rated charge current(Total) 1000A (every pack 100A)
8 Recommend charge current(Total) <800A
Standard discharge
1 Operation temperature range @discharging -20~60℃
2 Output Voltage Range 40~56Vdc
3 Recommend Working Range 46~54Vdc
4 Discharge Cut-off voltage 40V
5 Allowed MAX discharge current(Total) 2200A withstand 30s (every pack 220A)
6 Peak discharge current(Total) 2400A withstand 5s (every pack 240A)
7 Rated discharge current(Total) 2000A (every pack 200A)
8 Recommend discharge current(Total) <1600A
Communication
1 RS485 For LCD remote
2 CAN PC control and monitor
MPPT (built-in) Description
Normal specification
1 PV POWER 3.5KW*8
2 PV Input Voltage 60-145Vdc
3 MPPT Charging Voltage 56.0Vdc (Fast charging)/54Vdc (Float charging)
4 MPPT Output Current 60A*8
Mechanical Characteristics
ESS482000P8 Dimension H*W*D Shipping H*W*D Weight(N.W.) Weight(G.W.)
1650*1120*1000mm 1840*1260*1100mm 1300KG 1400KG
