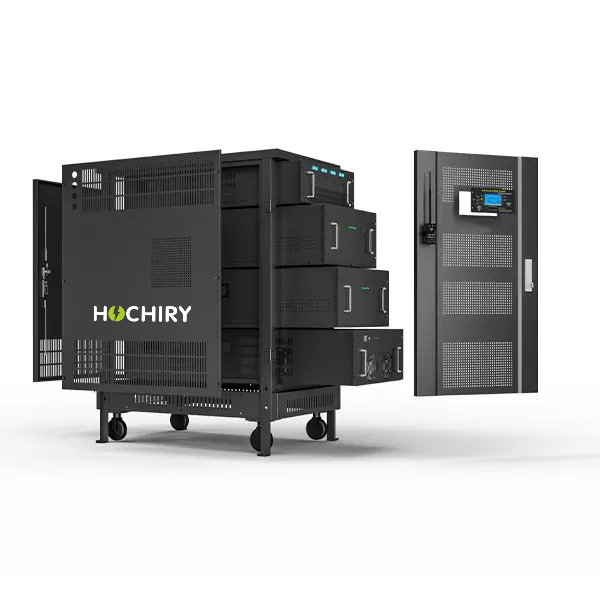

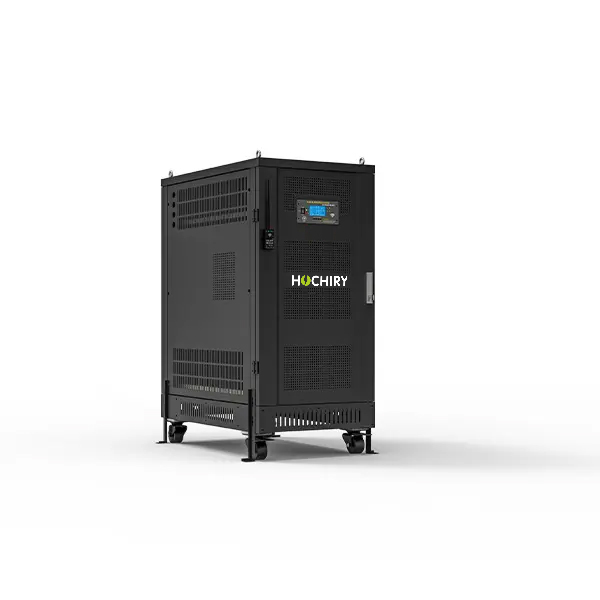

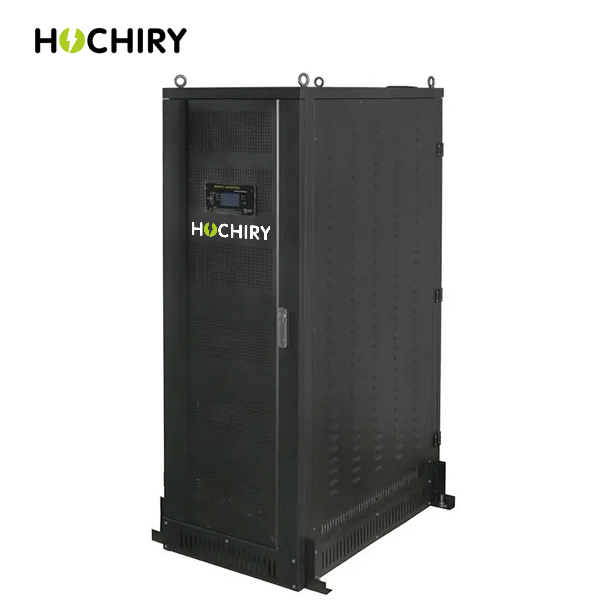

20.48Kwh Energy Storage System LiFePO4 battery pack

HOME ENERGY STORAGE SYSTEM

ALL-IN-ONE
10KW / 20.48KWH

ESS10048E400P4
Built with YIY off grid inverter charger
CAN / RS485 / WIFI APP
Multi working modes selectable
Modular design, flexible installation
INVERTER : HP 10048DR 48V / 10KW
BATTERY : LFP 48100R*2 51.2V / 200AH
MPPT : SCM 48200R 200A / 48V
SOLAR PANELS : 370M6H 370W*24PCS

Description

Model Configuration
ESS10048E400P4 MPPT-SCM 48200R INVERTER-HP 10048DR BATTERY-LFP 48200R*2 Total energy
200A(50A*4) 10KW 400AH(200AH*2) 20.48kwh
Battery Description
Normal specification
1 Rated Voltage 51.2V
2 Rated Capacity 400Ah
3 Rated Energy 20.48KWH
4 Battery Configuration 10.24KWH(16S2P) *2PCS
5 Battery Cell 3.2V100AH 64PCS
Standard Charge
1 Operation temperature range @charging 0~45℃
2 Rated charge voltage 55.2±0.4V
3 Max charge voltage 56.8±0.4V
4 Overcharge protection 58.4±0.4V
5 Allowed MAX charge current(Total) 220A withstand 30s (every pack 110A)
6 Peak charge current(Total) 240A withstand 5s (every pack 120A)
7 Rated charge current(Total) 200A (every pack 100A)
8 Recommend charge current(Total) <200A
Standard discharge
1 Operation temperature range @discharging -20~60℃
2 Output Voltage Range 40~56Vdc
3 Recommend Working Range 46~54Vdc
4 Discharge Cut-off voltage 40V
5 Allowed MAX discharge current(Total) 440A withstand 30s (every pack 220A)
6 Peak discharge current(Total) 480A withstand 5s (every pack 240A)
7 Rated discharge current(Total) 400A (every pack 200A)
8 Recommend discharge current(Total) <400A
Communication
1 RS485 For LCD remote
2 CAN PC control and monitor
Inverter (built-in) Description
Normal specification
1 Rated Power 10KW
2 Output Waveform Pure Sine Wave/Same as input (Bypass Mode)
3 Output Voltage 240Vac(H-H)/120Vac(H-N) ±10% RMS
4 Output Frequency 50 or 60± 0.3Hz (Inverter mode by sw4 setting)
5 Typical Transfer Time 4-6ms typical,10ms(Max)
6 THD < 3%(Rated voltage full R load)
7 AC Input Range 184-253Vac (UPS mode) or 140-270Vac (GEN mode)
8 Customized AC Charger Battery type selector position 9, special design for LFP, make the battery cycle life Maximization
9 MAX AC Charge Current 90A
10 Battery priority Function Setting by SW5 on position 1 (inverter mode valid), AC automatic come in when battery voltage low alarm at 48Vdc or 50Vdc
11 AC Bypass without charging Battery type selector position 0
MPPT (built-in) Description
Normal specification
1 PV POWER 3.0KW*4
2 PV Input Voltage 60-145Vdc
3 MPPT Charging Voltage 56.0Vdc (Fast charging)/54Vdc (Float charging)
4 MPPT Output Current 50A*4
Mechanical Characteristics
ESS10048E400P4 Dimension H*W*D Shipping H*W*D Weight(N.W.) Weight(G.W.)
1110*560*960mm 1290*700*1050mm 350KG 370KG
