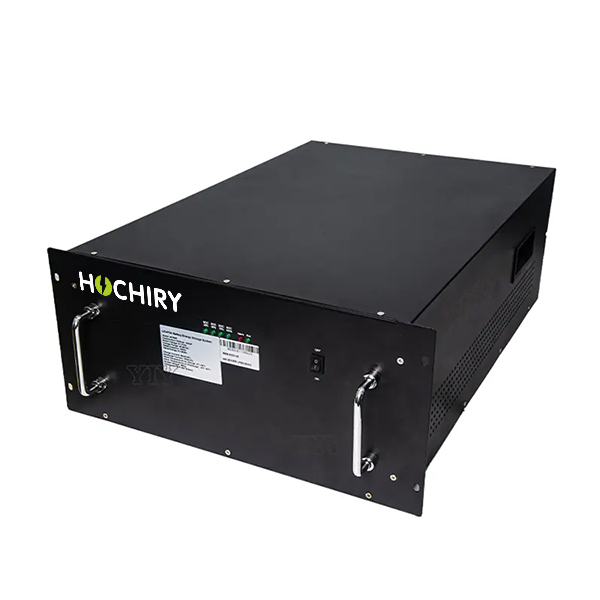

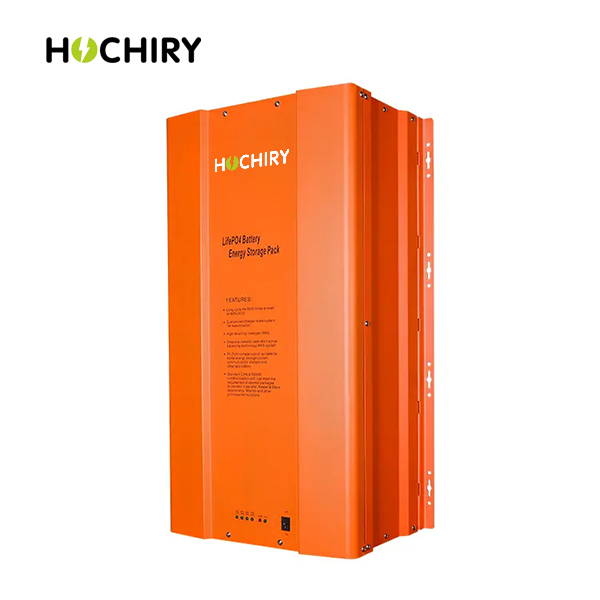

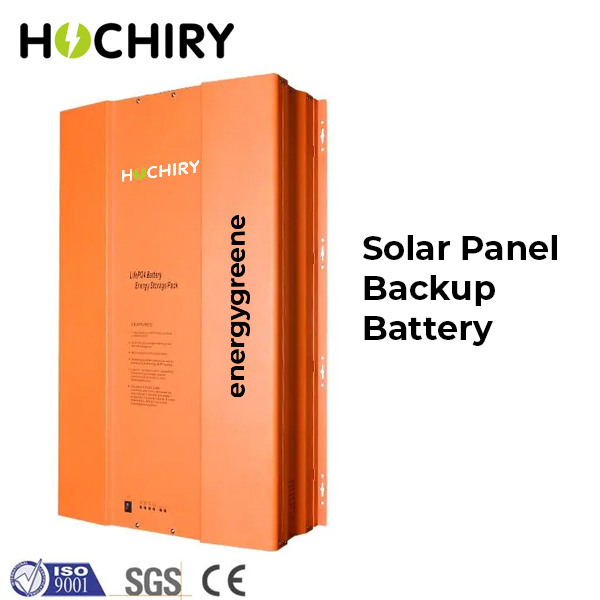

48V Pure Battery Pack LFP48100H / LFP48100R / LFP48200H / LFP48200R

LFP48100H / LFP48100R / LFP48200H / LFP48200R
  • 51.2Vdc rated capacity 5.12KWH&10.24KWH
  • Long cycle life 3500 times at least on 80%DOD
  • High reliability intelligent BMS

Description

Battery Cell Description
Normal specification
Model LFP48100H LFP48100R LFP48200H LFP48200R
Rated Voltage 51.2V
Rated Capacity 100Ah 200Ah
Rated Energy 5.12KWH 10.24KWH
Cell Configuration 8S2P 16S2P
Battery Cell 3.2V100AH 16PCS 3.2V100AH 32PCS
Standard Charge
Operation temperature range ©charging 0~45°C
Rated charge voltage 55.2±0.4V
Max charge voltage 56.8±0.4V
Overcharge protection 58.4±0.4V
Allowed MAX charge current 55A withstand 30s 110A withstand 30s
Peak charge current 60A withstand 5s 120A withstand 5s
Rated charge current 50A 100A
Recommend charge current <50 A <100A
Standard discharge
Operation temperature range ©discharging -20~60°C
Output Voltage Range 40~56Vdc
Recommend Working Range 46~54Vdc
Discharge Cut-off voltage 40V
Allowed MAX discharge current 110A withstand 30s 220A withstand 30s
Peak discharge current 120A withstand 5s 240A withstand 5s
Rated discharge current 100A 200A
Recommend discharge current <100A <200A
Communication
RS485 For LCD remote
CAN PC control and monitor
Storage and Transportation requirements
Storage Temperature Less than 1 month:-20~35°C
Less than 6 month:-10-30°C
Storage Humidity 45~75%RH
SOC Storage:60~75% SOC
Transport:45~55% SOC
Mechanical Characteristics
Dimension H*W*D 516*550*187mm 245*482*600mm 850*550* 187mm 245*482*900mm
Shipping H*W*D 616*614*290mm / 1000*670*400mm /
Weight(N.W.) 48KG / 100KG /
Weight(G.W.) 53KG / 110KG /
