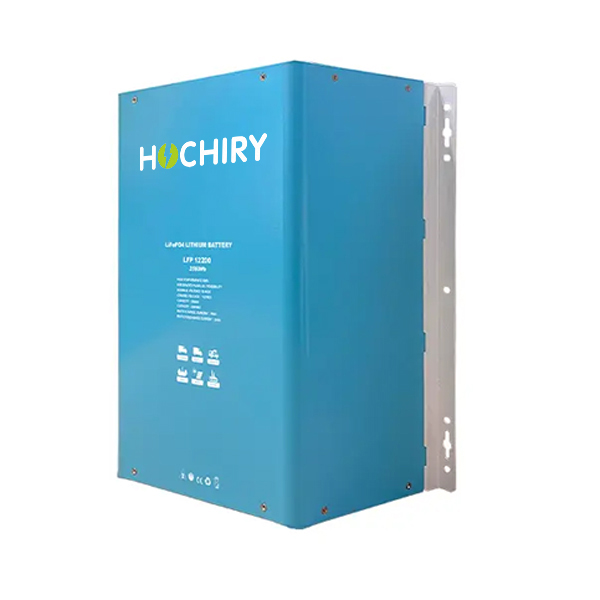

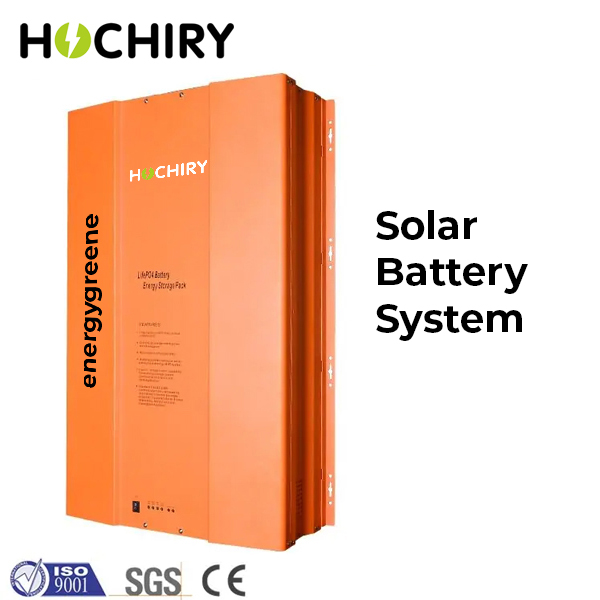

12V Pure Battery Pack LFP12200M / LFP12400H

Short Description:

LFP12400H / LFP12200M
  • 12.8Vdc rated capacity 2.56KWH&5.12KWH
  • Long cycle life 3500 times at least on 80%DOD
  • High reliability intelligent BMS

Description

Battery Cell Description
Normal specification
Model LFP12200M LFP12400H
Rated Voltage 12.8V
Rated Capacity 200Ah 400Ah
Rated Energy 2.56KWH 5.12KWH
Cell Configuration 4S2P 4S4P
Battery Cell 3.2V100AH 8PCS 3.2V100AH 16PCS
Standard Charge
Operation temperature range ©charging 0~45°C
Rated charge voltage 13.8±0.1V
Max charge voltage 14.2±0.1V
Overcharge protection 14.6±0.1V
Allowed MAX charge current 110A withstand 30s 220A withstand 30s
Peak charge current 120A withstand 5s 240A withstand 5s
Rated charge current 100A 200A
Recommend charge current <100A <200A
Standard discharge
Operation temperature range ©discharging -20~60°C
Output Voltage Range 10-14Vdc
Recommend Working Range 11.5~13.5Vdc
Discharge Cut-off voltage 10V
Allowed MAX discharge current 220A withstand 30s 440A withstand 30s
Peak discharge current 240A withstand 5s 480A withstand 5s
Rated discharge current 200A 400A
Recommend discharge current <200A <400A
Communication
RS485 For LCD remote
CAN PC control and monitor
Storage and Transportation requirements
Storage Temperature Less than 1 month:-20~35°C
Less than 6 month:-10-30°C
Storage Humidity 45~75%RH
SOC Storage:60~75% SOC
Transport:45~55% SOC
Mechanical Characteristics
Dimension H*W*D 450*260*185mm 516*550*187mm
Shipping H*W*D 500*360*315mm 616*614*290mm
Weight(N.W.) 26KG 48KG
Weight(G.W.) 29KG 53KG
