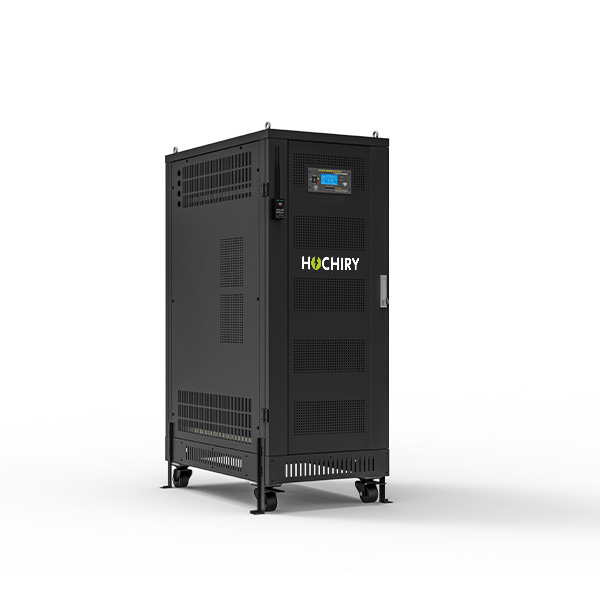

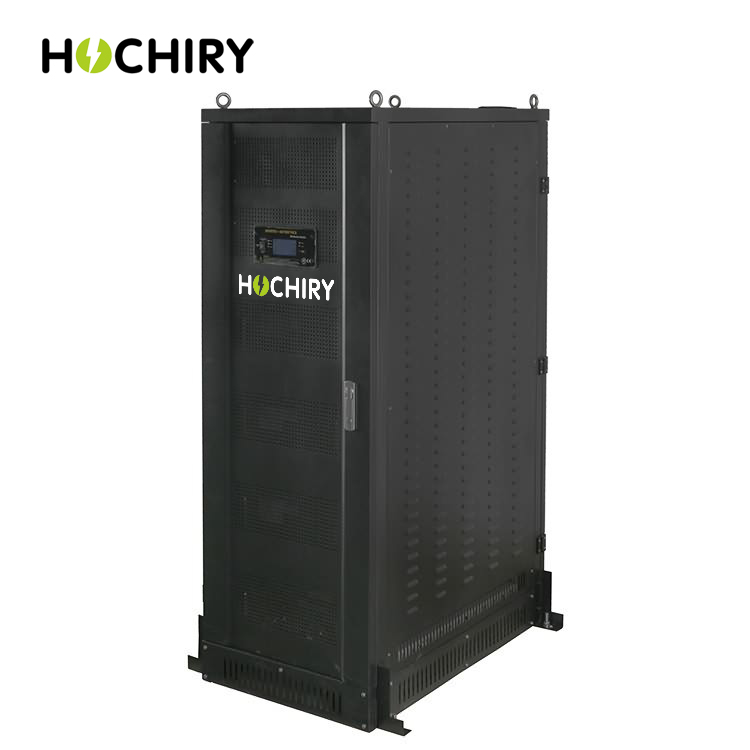

30.72Kwh Energy Storage System LiFePO4 battery pack

HOME ENERGY STORAGE SYSTEM

ALL-IN-ONE
12KW / 30.72KWH

ESS12048E600P4

Built with YIY off grid inverter charger
CAN / RS485 / WIFI APP
Multi working modes selectable

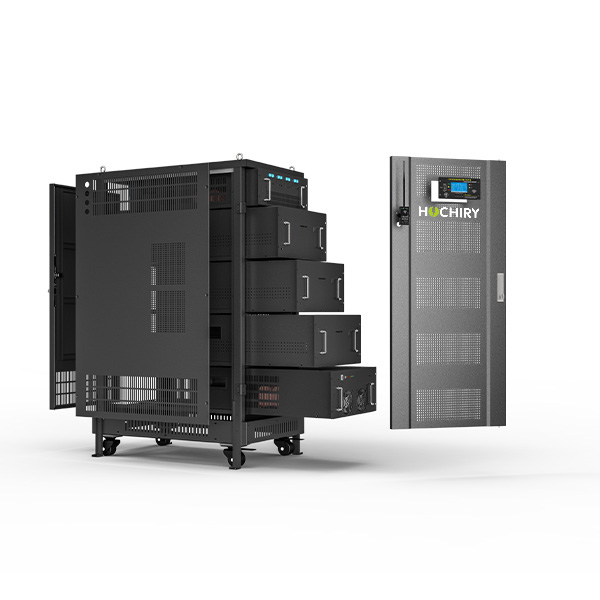

Modular design, flexible installation

INVERTER : HP 12048DR  48V / 12KW
BATTERY : LFP 48200R*3 51.2V / 200AH
MPPT : SCM 48240R 240A / 48V
SOLAR PANELS : 370M6H  370W*36PCS

Description

Model Configuration
ESS12048E600P4 MPPT-SCM 48240R INVERTER-HP 12048DR BATTERY-LFP 48200R*3 Total energy
240A(60A*4) 12KW 600AH(200AH*3) 30.72kwh
Battery Description
Normal specification
1 Rated Voltage 51.2V
2 Rated Capacity 600Ah
3 Rated Energy 30.72KWH
4 Battery Configuration 10.24KWH(16S2P) *3PCS
5 Battery Cell 3.2V100AH 96PCS
Standard Charge
1 Operation temperature range @charging 0~45℃
2 Rated charge voltage 55.2±0.4V
3 Max charge voltage 56.8±0.4V
4 Overcharge protection 58.4±0.4V
5 Allowed MAX charge current(Total) 330A withstand 30s (every pack 110A)
6 Peak charge current(Total) 360A withstand 5s (every pack 120A)
7 Rated charge current(Total) 300A (every pack 100A)
8 Recommend charge current(Total) <300A
Standard discharge
1 Operation temperature range @discharging -20~60℃
2 Output Voltage Range 40~56Vdc
3 Recommend Working Range 46~54Vdc
4 Discharge Cut-off voltage 40V
5 Allowed MAX discharge current(Total) 660A withstand 30s (every pack 220A)
6 Peak discharge current(Total) 720A withstand 5s (every pack 240A)
7 Rated discharge current(Total) 600A (every pack 200A)
8 Recommend discharge current(Total) <600A
Communication
1 RS485 For LCD remote
2 CAN PC control and monitor
Inverter (built-in) Description
Normal specification
1 Rated Power 12KW
2 Output Waveform Pure Sine Wave/Same as input (Bypass Mode)
3 Output Voltage 240Vac(H-H)/120Vac(H-N) ±10% RMS
4 Output Frequency 50 or 60± 0.3Hz (Inverter mode by sw4 setting)
5 Typical Transfer Time 4-6ms typical,10ms(Max)
6 THD < 3%(Rated voltage full R load)
7 AC Input Range 184-253Vac (UPS mode) or 140-270Vac (GEN mode)
8 Customized AC Charger Battery type selector position 9, special design for LFP, make the battery cycle life Maximization
9 MAX AC Charge Current 100A
10 Battery priority Function Setting by SW5 on position 1 (inverter mode valid), AC automatic come in when battery voltage low alarm at 48Vdc or 50Vdc
11 AC Bypass without charging Battery type selector position 0
MPPT (built-in) Description
Normal specification
1 PV POWER 3.5KW*4
2 PV Input Voltage 60-145Vdc
3 MPPT Charging Voltage 56.0Vdc (Fast charging)/54Vdc (Float charging)
4 MPPT Output Current 60A*4
Mechanical Characteristics
ESS12048E600P4 Dimension H*W*D Shipping H*W*D Weight(N.W.) Weight(G.W.)
1360*560*960mm 1540*700*1050mm 440KG 480KG
